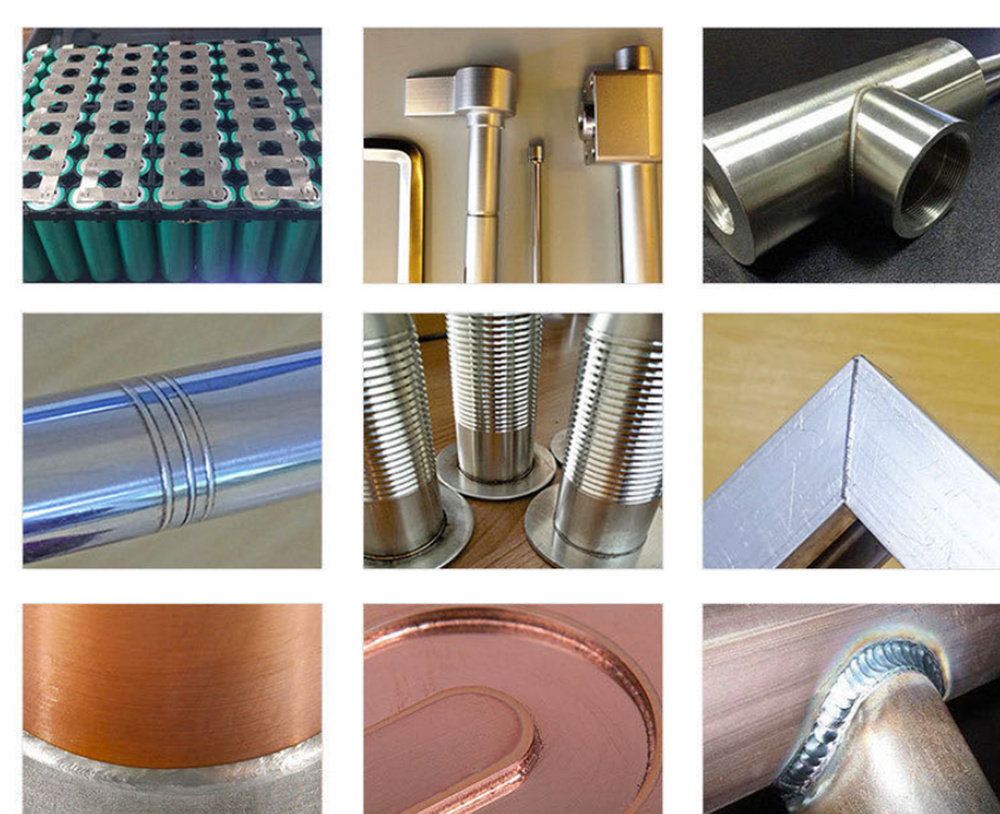

YAG automatic welding machine, also known as YAG laser spot welding machine, uses YAG as the laser working material and a pulsed xenon lamp as the pump source to generate high-energy pulsed laser to perform precision welding on the workpiece. The automatic spot laser welding machine is mainly suitable for electronic components, mobile phone batteries, jewelry, sensors, watches, precision machinery, communications, elevator accessories, stainless steel door handle, stainless steel wine pot, communications, crafts and other industries.
|
Models |
DW- 400A DW-600A |
||
|
Laser power |
400W 600W |
||
|
Travel Path(X, Y, Z) |
X=300mm ,Y=200mm,Auto X & Y Axis and focus control by software .Electrical adjust Z Axis. |
||
|
Power Supply |
220V±10%/50Hz/60Hz / 380V±10%/50Hz/60Hz |
||
|
Laser Type |
Nd:YAG Pulse |
||
|
Laser Spot |
0.1-3mm |
||
|
Wavelength |
1064nm |
||
|
Pulse Width |
0.5-25ms |
||
|
Pulse Frequency |
0-100Hz |
||
|
Focusing Size |
110mm |
||
|
Cooling system |
Water Cooling with chiller |
||
|
Observing System |
CCD |
||
|
Welding Wire Dimension |
0.1-1.0mm |
||
|
Total power |
12kw 17kw |
||
Please check Video to see more details and how it works introduction:
● This Automatic laser welder use electric XY Working table, auto focus laser head ,could welding on curving surface controlled by software.when use Rotary, it is 4 axis automatically ,Could add Automatic wire feeding system.
● CNC2000 Software and computer and CCD viewing system free with machine.
● Output power, frequencies, the pulse width and other parameters of the Laser set up directly in system.
● PLC controls Workbench moving speed & directions (forward, backward, left or right), produce a flat and tidy welding line or welding point to optimize the results.

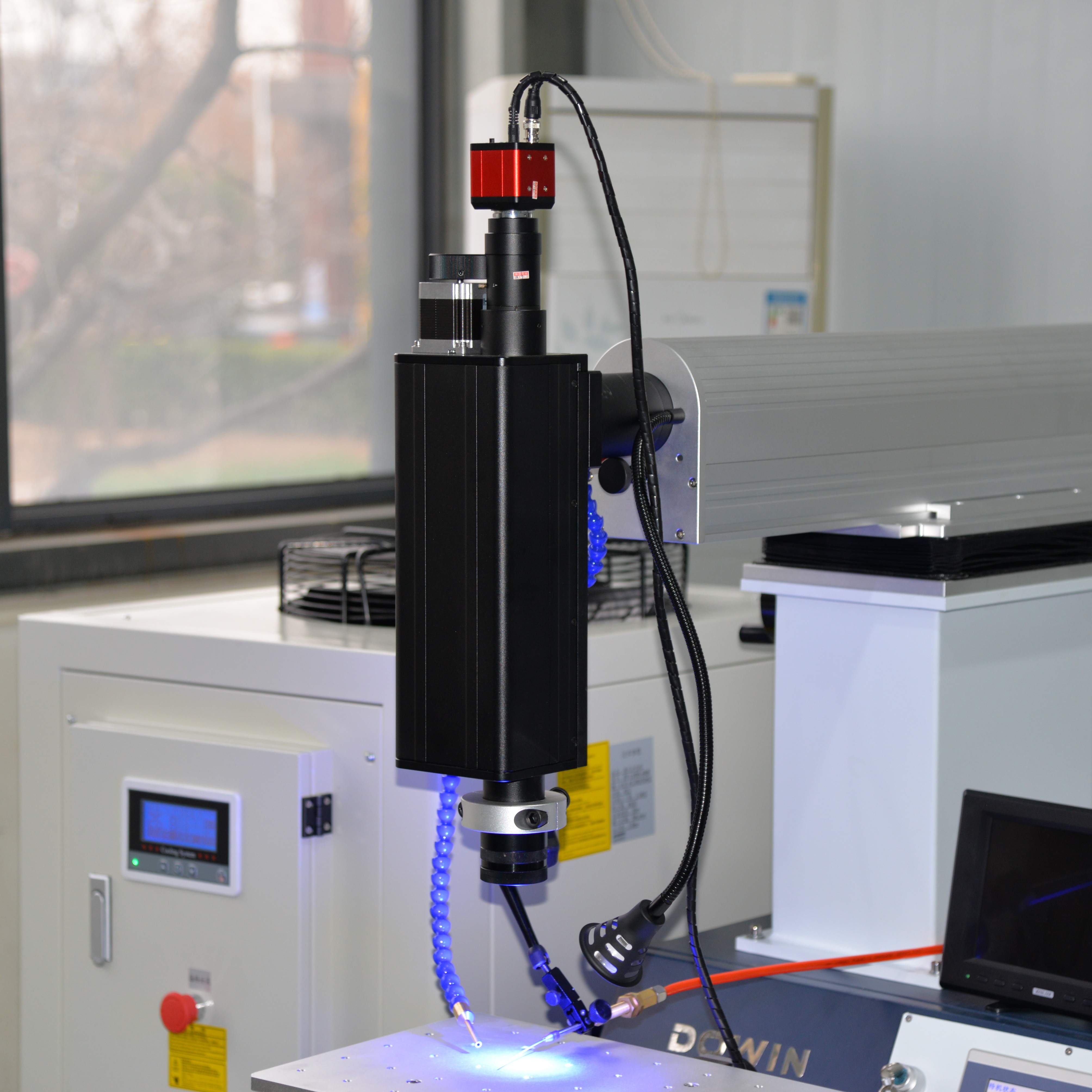

ELECTRICAL UPPER AND LOWER LASER HEADS
The lead head is electrically equipped with a motor up and down,which is more accurate and convenient.

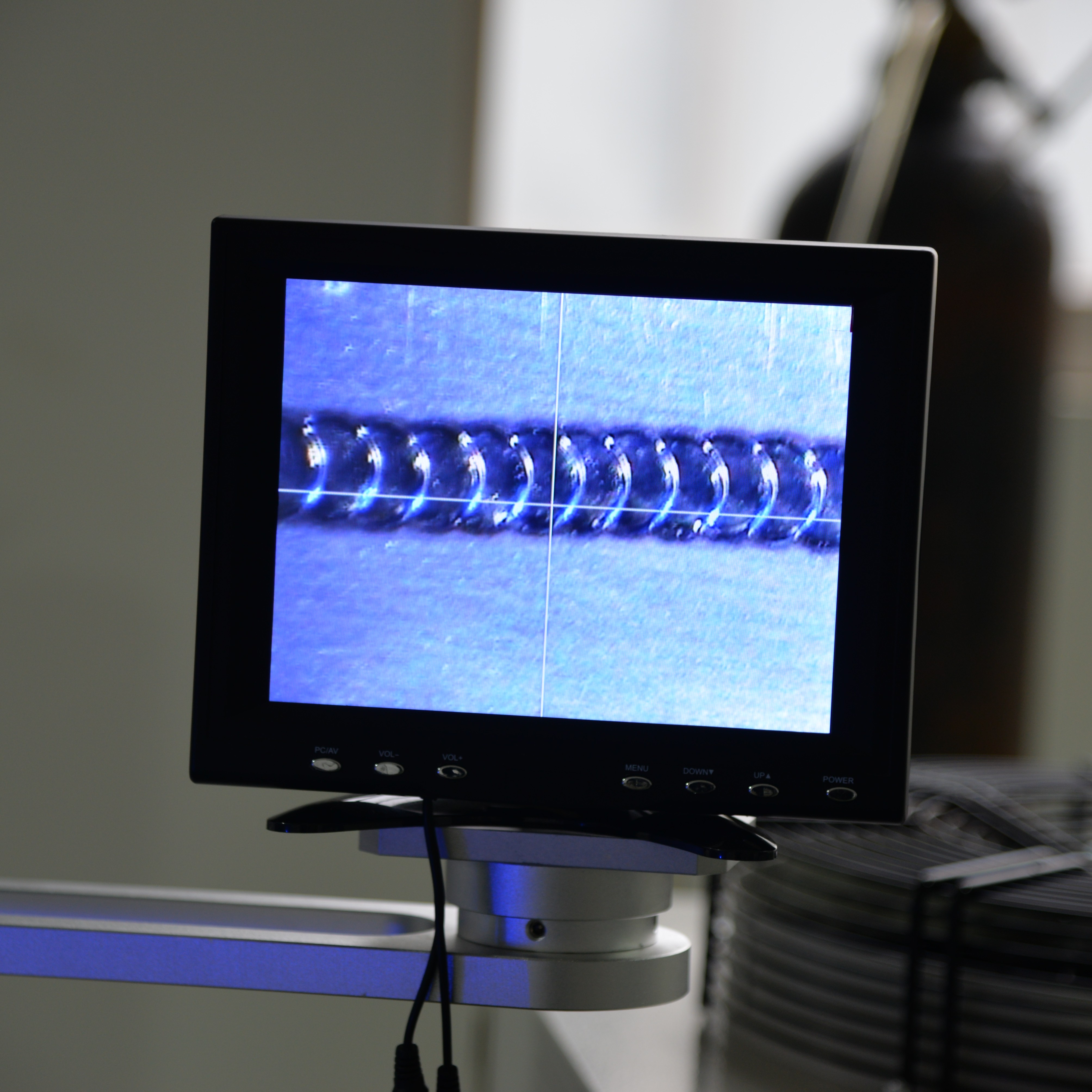

VISION SYSTEM
It intuitively reproduces welding details that are invisible to the human eye.The size and position of the solder spot are easy to adjust.

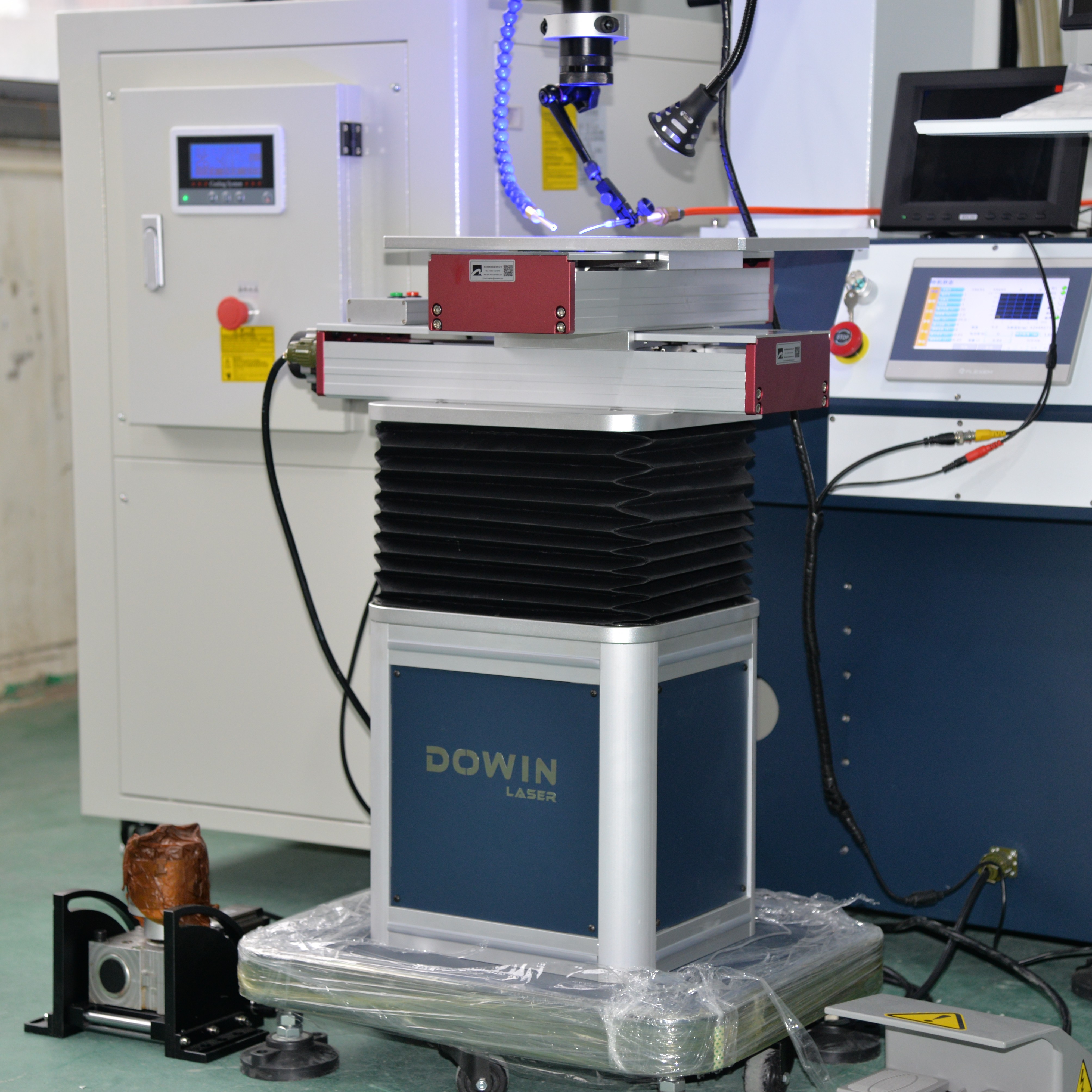

WORKBENCH
Electric lifting and four-way movement

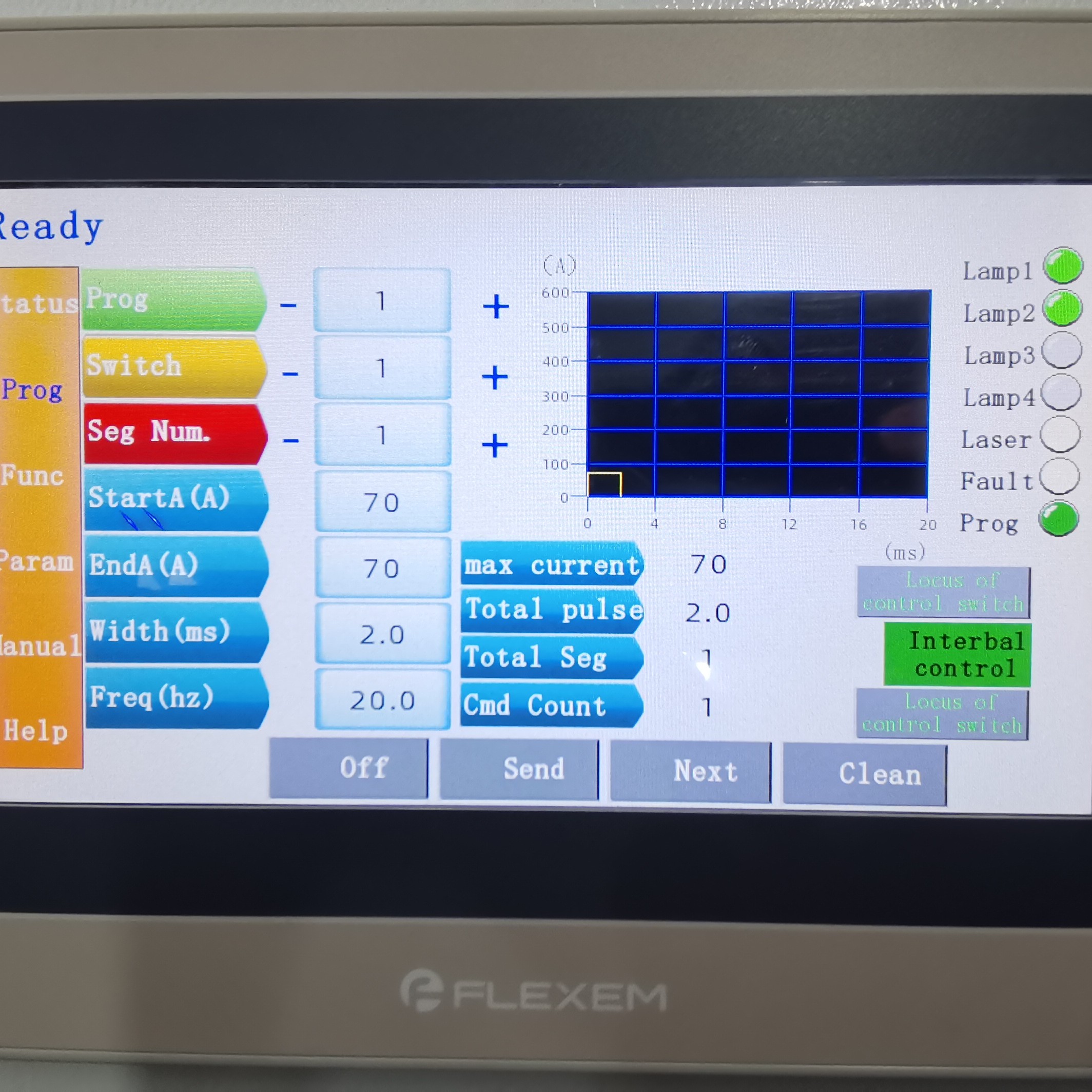

LCD COLOR SCREEN
The operation interface of the welding machine control system is simple and practical.Pulse width, frequency,and speed can be displayed on the screen without the need for a PC.It can save 50 sets of commonly used welding instruments. Easy to use.

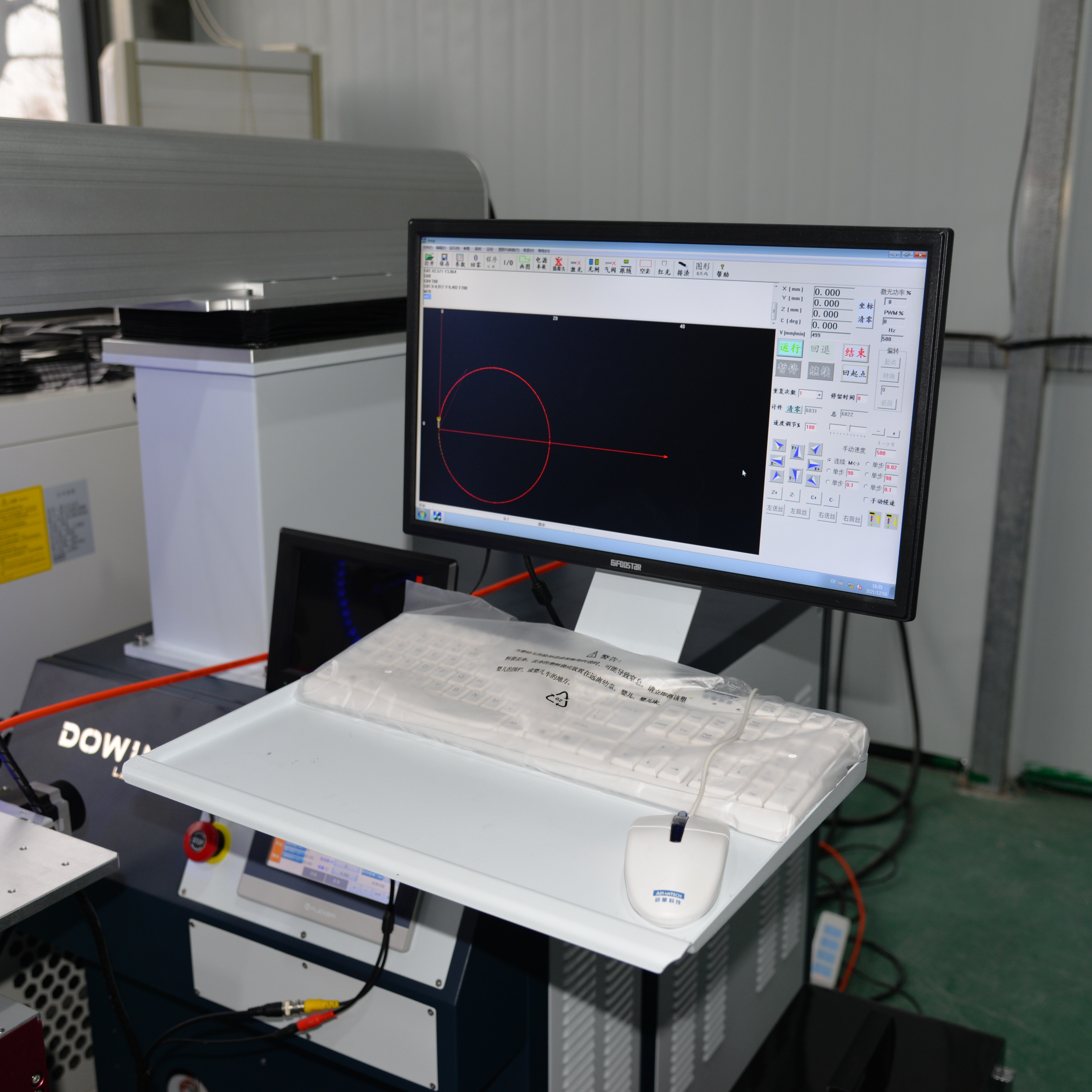

AUTOMATIC CONTROL SYSTEM
CNC 2000 control system

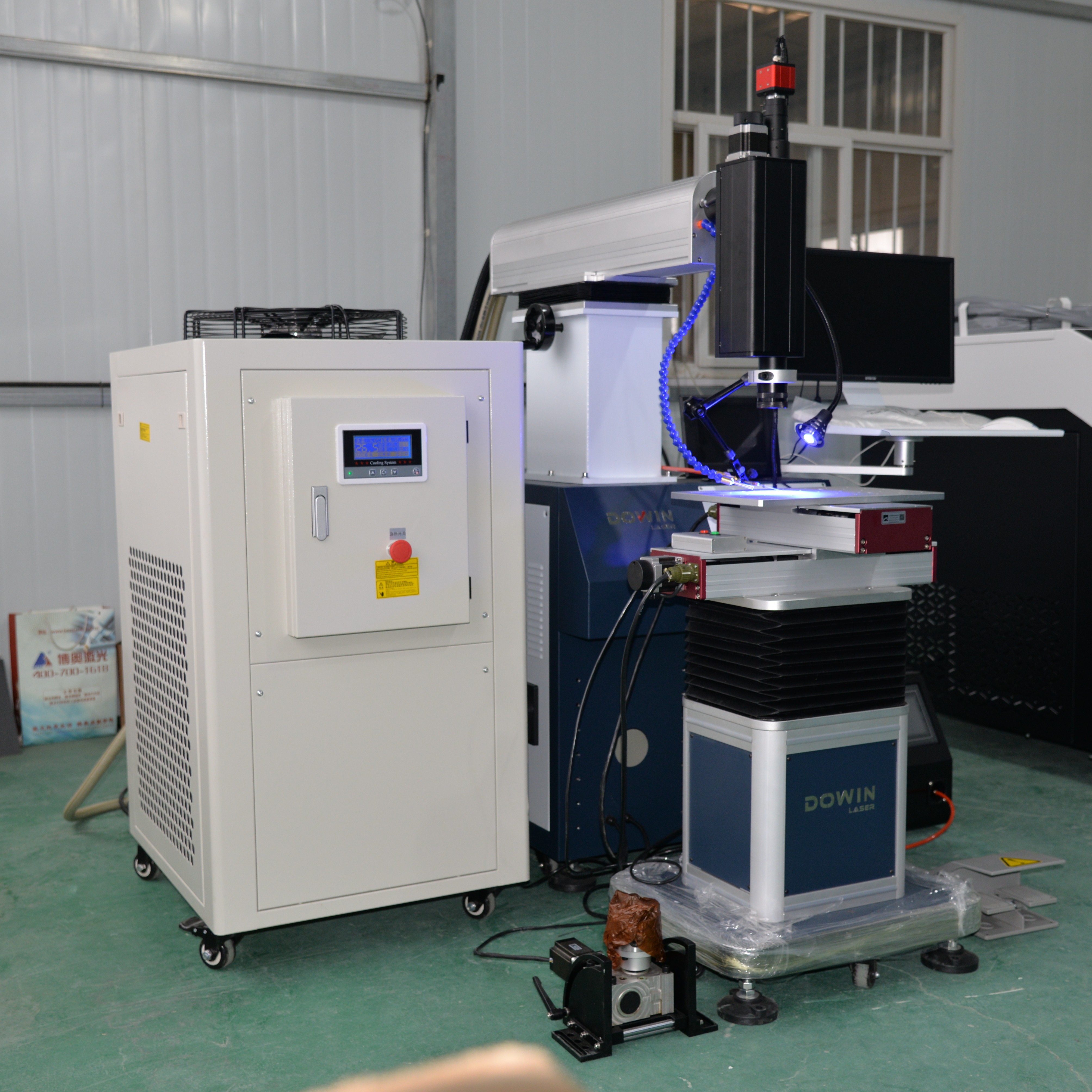

BINGYUE BRAND CHILLER
Bingyue brand 1HP chiller can cool
the machine and keep the ma-
chine in good working condition.
The operator can adjust the tem-
perature parameters on the cooler
panel.

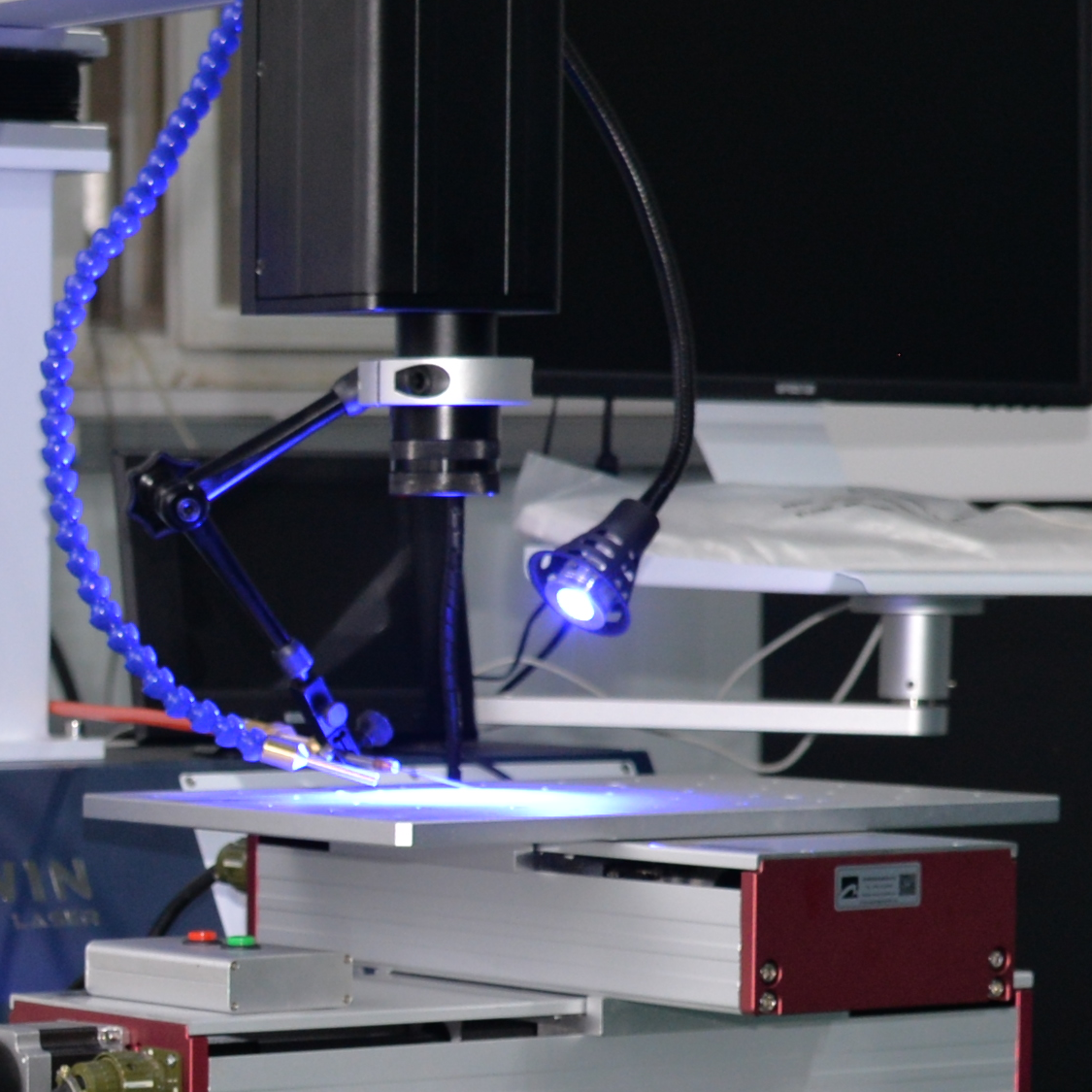

DUAL LED LIGHTS
It comes standard with 2 high-light
camera aux lights,1 white CCD aux
light,and 1 blue microscope aux
light.The auxiliary lighting adopts
energy-saving high bulbs,which
has clear imaging and good heat
dissipation effect,and will not
burn the skin for a long time.
