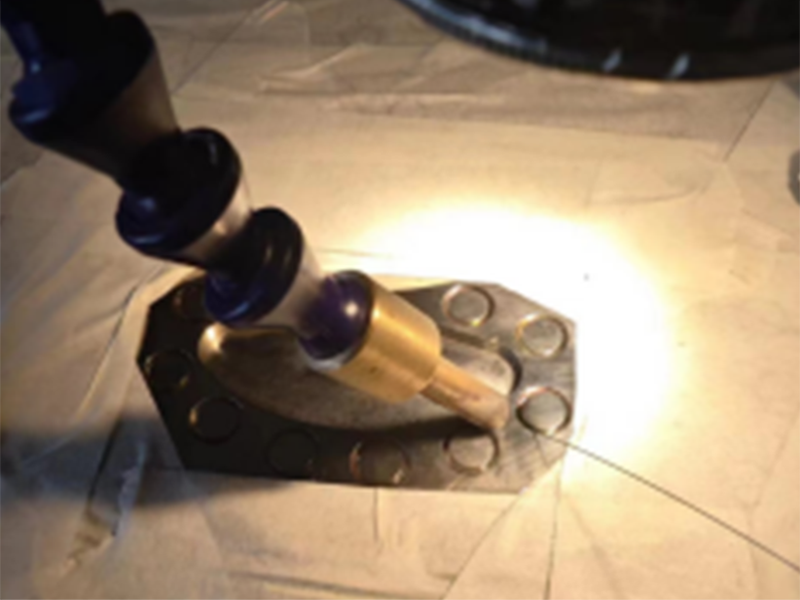

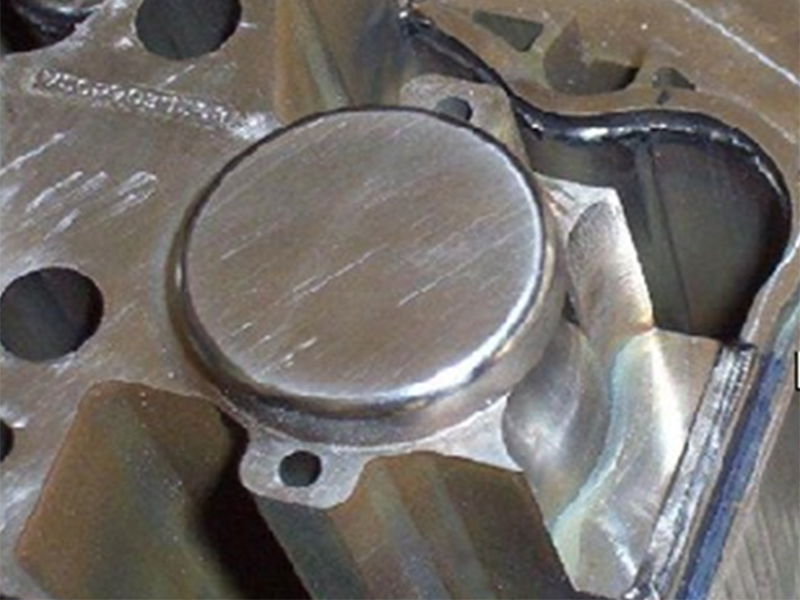

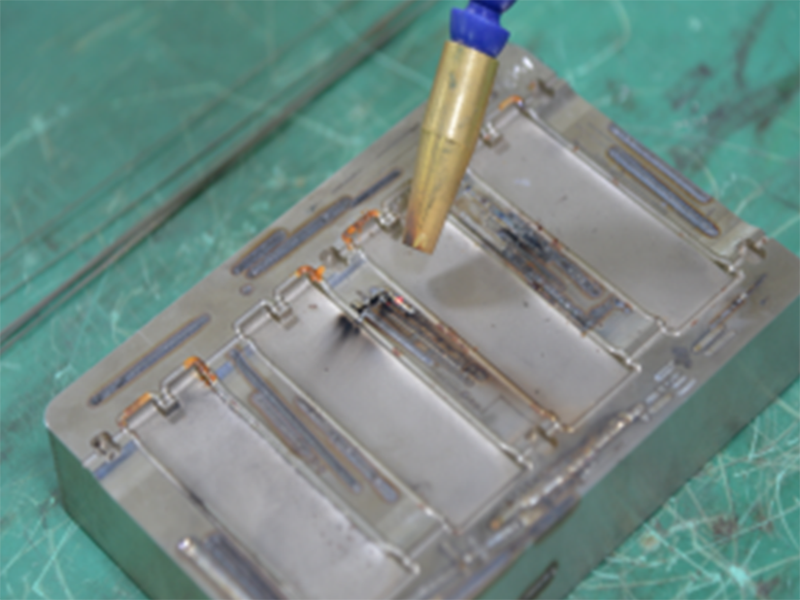

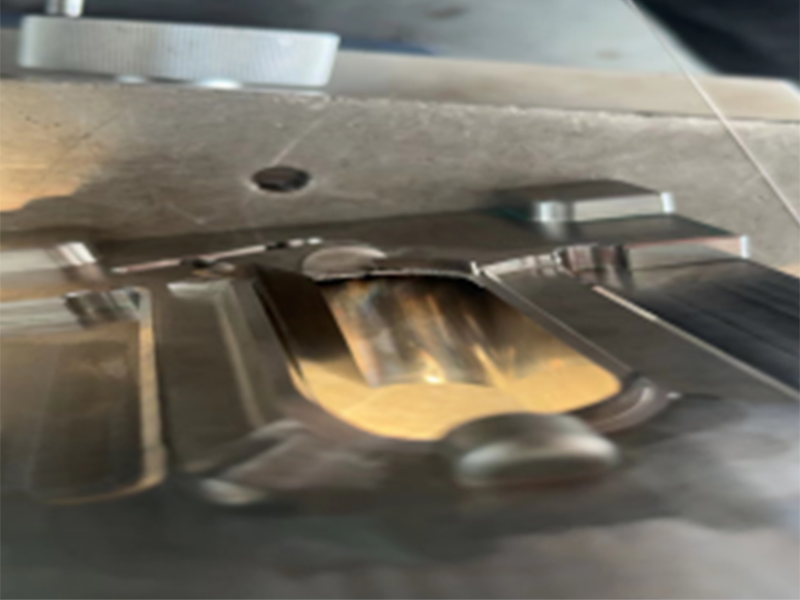

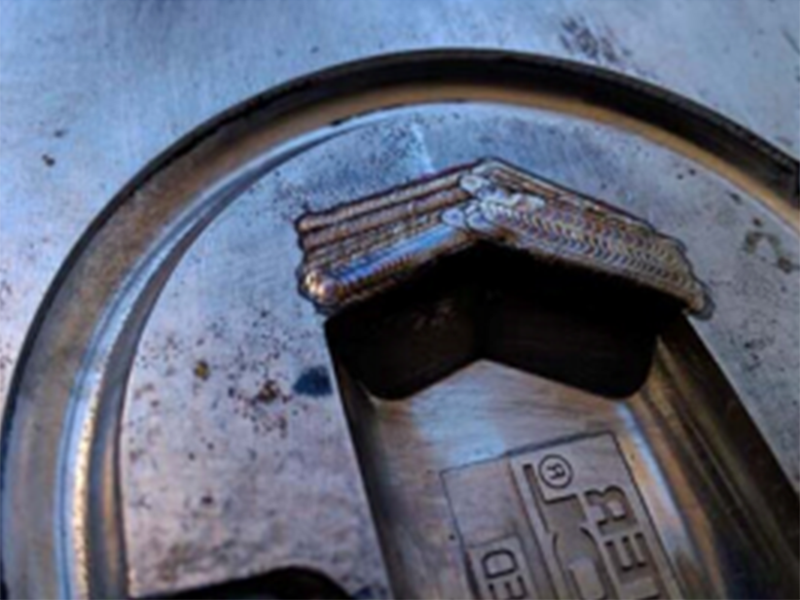

This crane arm laser welding machine specially designed for large, medium and small mold manufacturing and maintenance industries for mold repair. Its working principle laser welding deposition welding, laser high heat energy and concentrated spot welding. The technology can effectively handle the welding and repair work of the defective part, and makes up for the shortcomings of traditional argon arc welding and cold welding technology in repairing the fine surface of welding.
| Models | DW-400W | DW-600W |
| Xenon Lamp | 2pcs | 2pcs |
| Working table Travel Path(X,Y,Z) |
X=300mm, Y=200mm, Electrically adjust X and Y Axis and Z Axis. |
|
| Power Supply | 380V±10%/50Hz/60Hz | |
| Laser Parameters | ||
| Laser Type | Nd:YAG Pulsed | |
| Laser Spot | 0.2-0.3mm | |
| Wavelength | 1064nm | |
| Pulse Width | 0.5-25ms | |
| Max. Average Power | 400W | 600W |
| Pulse Frequency | 0-100Hz | |
| Focusing Size | 150mm | |
| Chiller | Water Cooling System | |
| Protective Gas | Argon | |
| Welding Wire Dimension | 0.1-1.0mm | |
| Whole Power | 15KW | 18Kw |

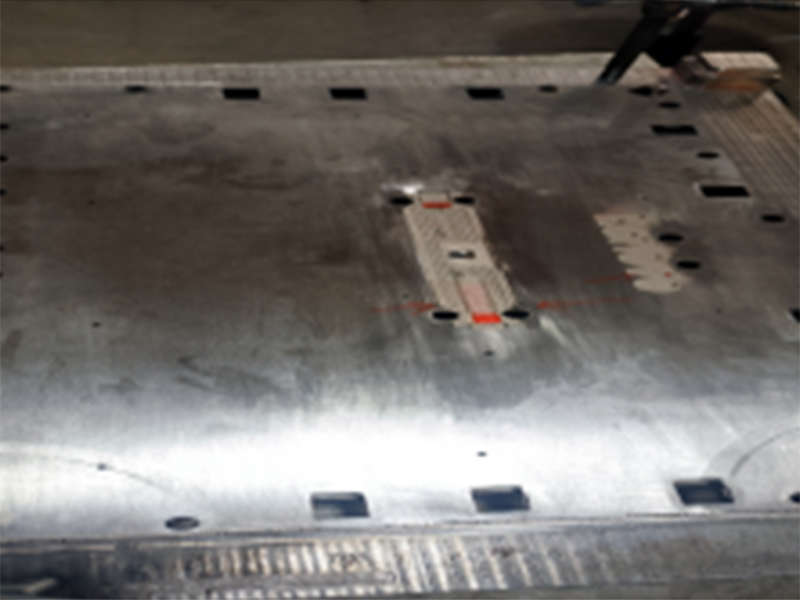

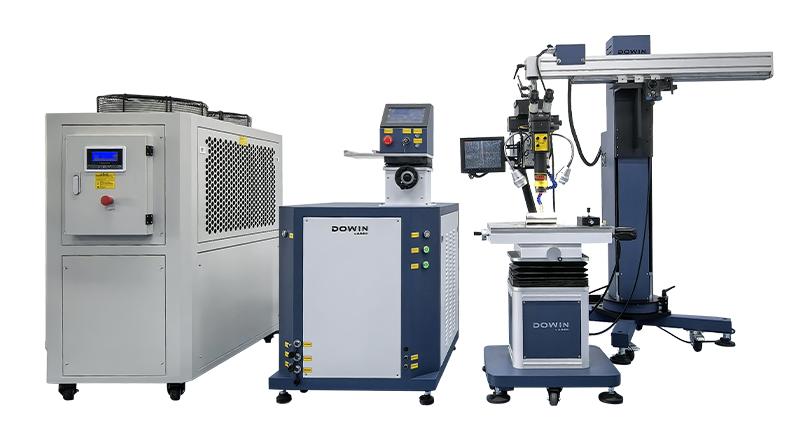

With unique structure design, it is suitable for repairing of large (size Max Diameter is 3000mm around), medium and small molds. with lifter arm, free to move to meet the repair needs of variety of mold materials.
1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small molds.
4.The parameters are controlled by intelligent remote controller, which is simple and convenient.
5.The work bench can be lifted, and moved in three dimensions.
6.The size of light spot can be adjusted.

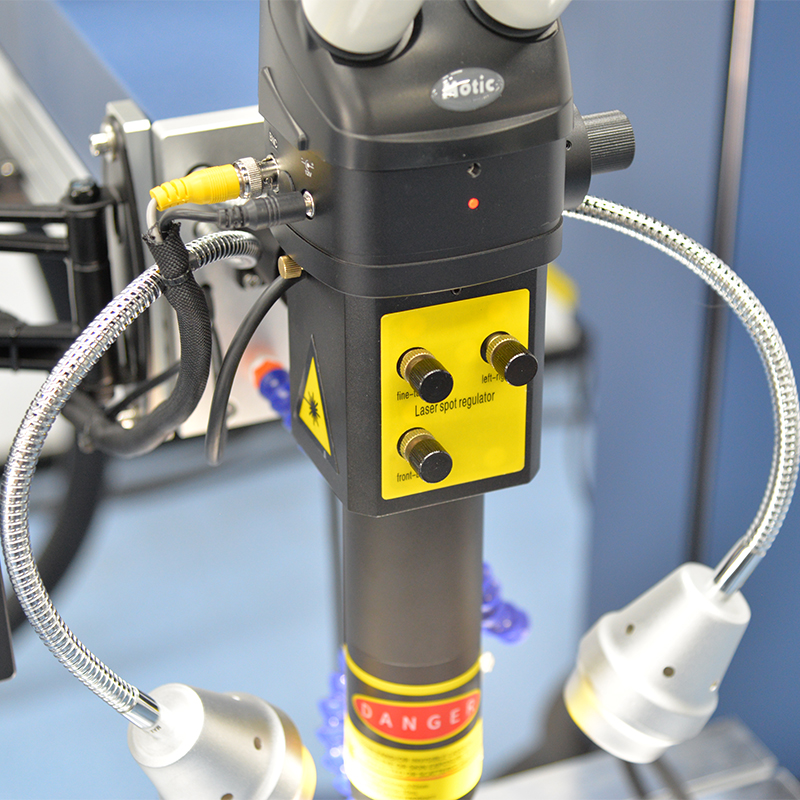

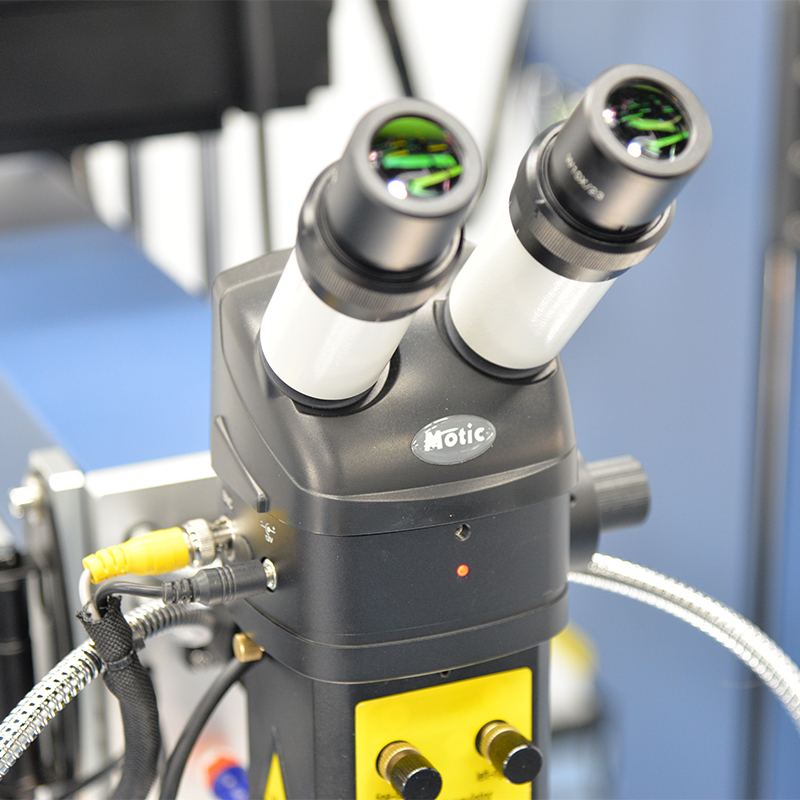

MOTIC BRAND MICROSCOPE
Comes from a very famous brandUSA company who focused on mi-croscope only ,with high precisiontopquality

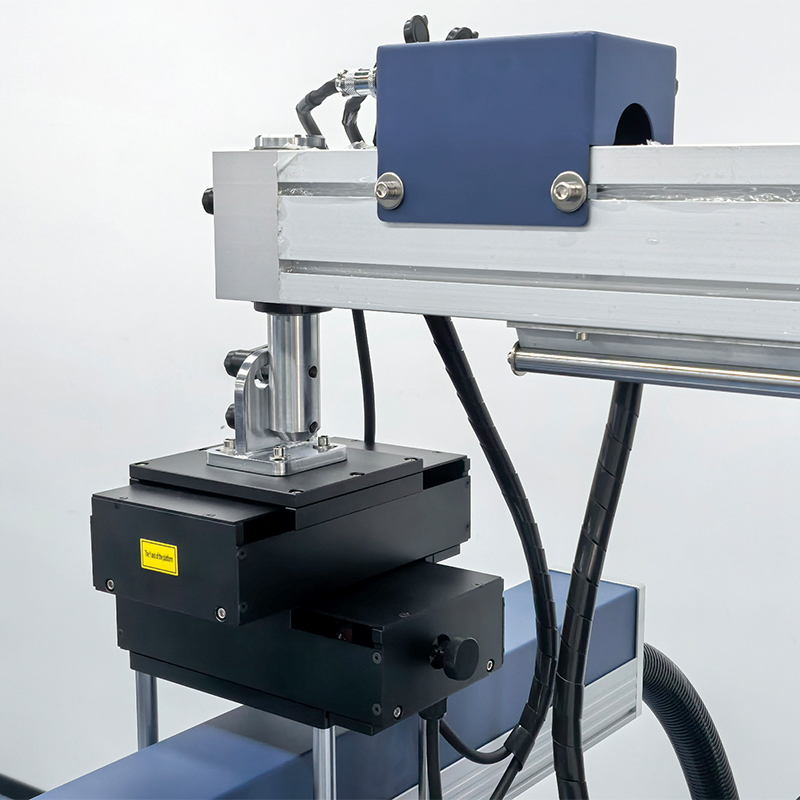

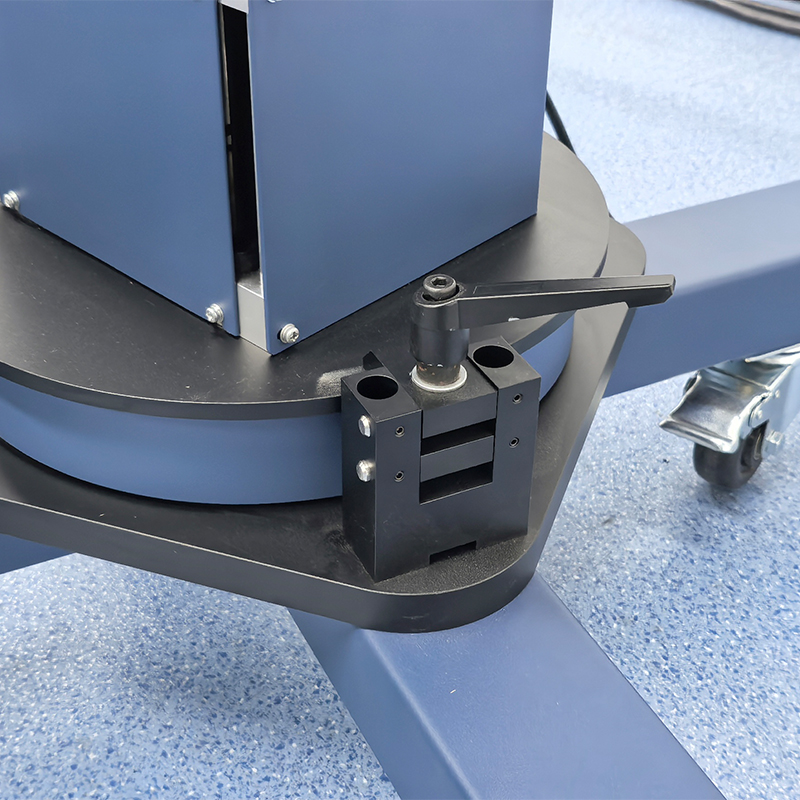

360 DEGREE ROTATE LASER ARMS
Laser path back and forth , lef andright , helping to achieve flexible, efficient and free welding processesWelding stability and consistencyare higher, and product quality iseasier to control.
LASER ARM ELECTRICAL UP-DOWN
It is more time-saving, labor-saving,convenient and fast
WORKING TABLE
The XY axis has a manual controller table,which adjusts the table according to the weld-ing situation and is easy to control
